Weld Fixtures

A weld fixture, simply put, is a tool used to hold objects and clamp them in place to be welded.  Weld fixtures locate multiple pieces to a pre-defined tolerance and are typically adjustable to fine-tune part dimensions.  Weld fixtures reduce cost of production, improve safety of the operator and the part, speed production time, and maintain repeatable and consistent quality for the duration of the product.

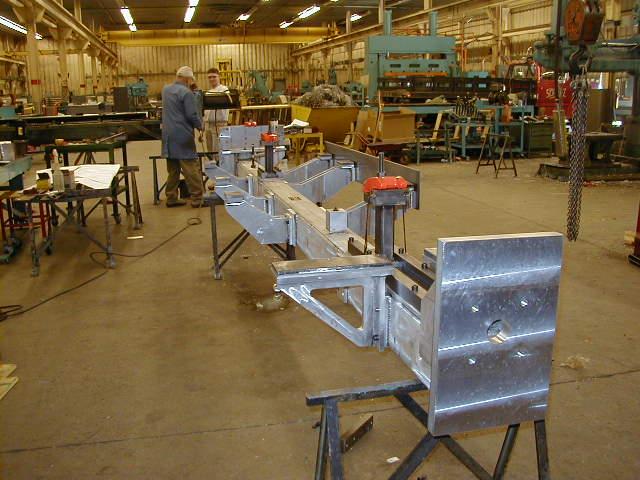

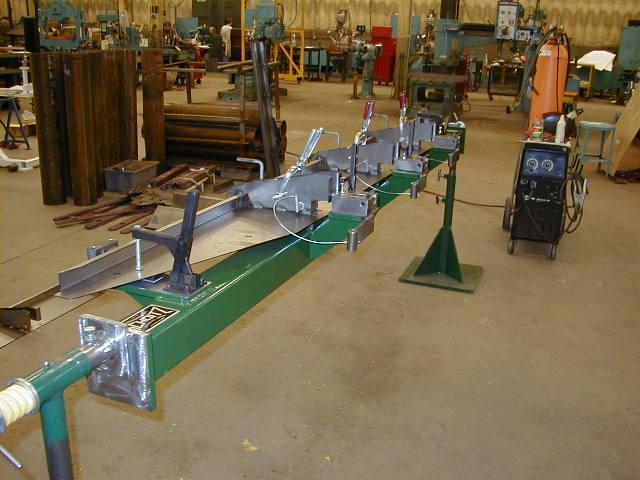

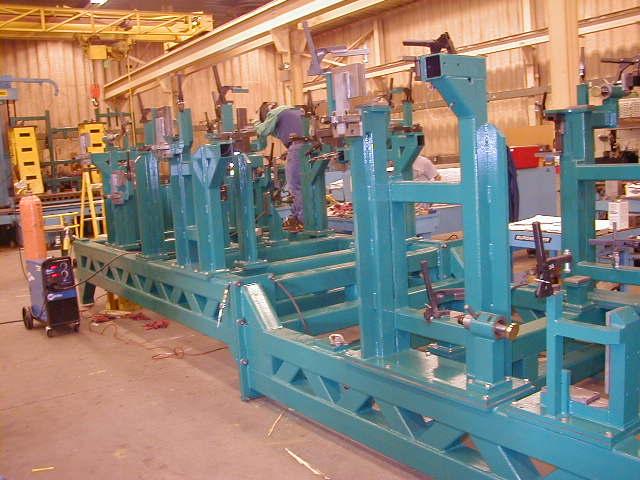

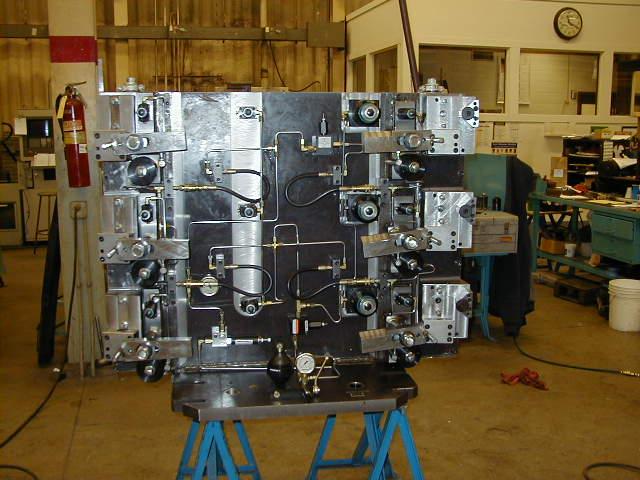

Schoitz Engineering is a recognized leader in robotic and manual weld fixtures.   Whether your need is simple manually operated fixtures, or fully automated robotic fixtures, Schoitz Engineering can provide you with a quality product, delivered on-time at a reasonable cost.  Click on the pictures below to take a closer look at some examples of our high-quality tooling. Our fixtures are built to last, and designed to save you money over the life of your program.
